If your pump isn’t performing well, improper flange size could be to blame. An undersized flange may cause leaks due to poor gasket fit, while an oversized one can result in uneven gasket compression and damage. To fix this, you need to measure the flange diameter, bolt hole dimensions, and verify the bolt torque matches the flange size. Understanding these details will help you prevent pump issues and ensure smooth operation—more insights await as you keep going.
Key Takeaways
- Proper flange sizing ensures secure gasket fit, preventing leaks and reducing stress on the pump.
- Measure flange diameter, bolt hole size, and bolt circle to confirm compatibility with system components.
- Incorrect flange size can cause uneven gasket compression, leading to leaks and pump strain.
- Ensuring proper bolt torque based on flange size maintains seal integrity and pump performance.
- Proper flange measurement and sizing help avoid mechanical failure and prolong pump lifespan.
Ever wondered how flange sizes impact piping systems? It’s a critical question because the right flange size can make or break the entire setup. A proper flange connection relies heavily on gasket selection and bolt torque, both of which are directly influenced by flange dimensions. When these elements aren’t properly matched, you risk leaks, equipment damage, or even safety issues. Understanding how flange sizes come into play helps you avoid costly mistakes and guarantees your pump operates smoothly.
First, consider gasket selection. The size and type of gasket you choose depend on the flange dimensions. If the flange is too small for the pipe or equipment, the gasket might not seat properly, leading to leaks. Conversely, a flange that’s too large can cause uneven gasket compression, resulting in weak sealing and potential failure over time. Proper flange sizing ensures that the gasket fits snugly and distributes pressure evenly, which is essential for maintaining a leak-proof seal. It’s not just about matching diameters; the gasket material and thickness must also align with the flange’s pressure and temperature requirements. When you select the right gasket for your flange size, you optimize sealing performance and extend the lifespan of your piping system.
Bolt torque is another critical factor influenced by flange size. Once you’ve chosen the correct gasket, you need to tighten the bolts to the proper torque specifications. Too little torque, and the gasket won’t be compressed enough to seal effectively; too much, and you risk damaging the flange or warping the gasket. The flange size determines the number of bolts needed and the force required for even tightening. Larger flanges usually require more bolts and higher torque to ensure uniform pressure across the gasket surface. This uniform pressure is essential because it prevents leaks and mechanical stress that could cause cracks or deformation. Using the right bolt torque calibrated to your flange size guarantees a tight, secure connection that can withstand system pressures and thermal expansion.
In essence, understanding how flange sizes influence gasket selection and bolt torque is fundamental to maintaining a reliable piping system. Properly matched flange dimensions ensure your gasket seats correctly, providing an effective seal, and that bolts are tightened to the appropriate torque, maintaining integrity under operational stresses. Additionally, proper flange design enhances the overall safety and durability of the connection. When these elements are aligned, your pump runs efficiently, and you avoid the headaches of leaks, repairs, or system failures. So, next time you’re working on a piping connection, remember that getting the flange size right isn’t just a detail—it’s the foundation of a safe, durable, and efficient system.
Luxemum Nipple Rulers, Flange Inserts Sizing Measurement Tool for Breast Pump, Soft Silicone Flange Size Measure, Nipple Measuring for New Mums/Women
GREAT HELP FOR NEW MOMS – Using our nipple ruler measuring tool will help you quickly determine the…
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
Frequently Asked Questions
How Do I Determine the Correct Flange Size for My Pump?
To determine the correct flange size for your pump, start by measuring the bolt circle diameter and the number of bolt holes. Consider the gasket material you’ll use, as it influences flange pressure and sealing. Also, verify the flange bolting specifications to ensure proper strength and torque. Matching these measurements and materials guarantees a secure fit, preventing leaks and reducing stress on your pump.
What Are the Common Flange Standards and Their Differences?
You’ll find common flange standards like ANSI, DIN, and JIS, each with unique dimensions and bolt patterns. Flange compatibility depends on matching these standards, but standardization challenges occur because these variations can cause fitting issues. Always verify the standard and dimensions to guarantee proper connection. Recognizing these differences helps you avoid leaks, misalignments, and equipment damage, making your pump setup more reliable and efficient.
Can Flange Size Affect Pump Efficiency and Lifespan?
Did you know improper flange size can reduce pump efficiency by up to 15%? Yes, flange size directly impacts both efficiency and lifespan. Using the correct flange material and ensuring proper flange installation prevents leaks, reduces stress on the pump, and extends its life. When you select the right flange size, you promote better flow, minimize wear, and keep your pump running smoothly longer.
How Do I Troubleshoot Flange Leaks Effectively?
To troubleshoot flange leaks effectively, start by inspecting the gasket selection to verify it’s compatible with your fluid and temperature conditions. Check the bolt torque, making sure bolts are evenly tightened to manufacturer specifications. If leaks persist, re-evaluate the gasket’s condition and replace if damaged. Proper gasket choice combined with correct bolt torque prevents leaks and maintains flange integrity, guaranteeing ideal pump performance.
Are There Specific Tools Needed to Measure Flange Dimensions Accurately?

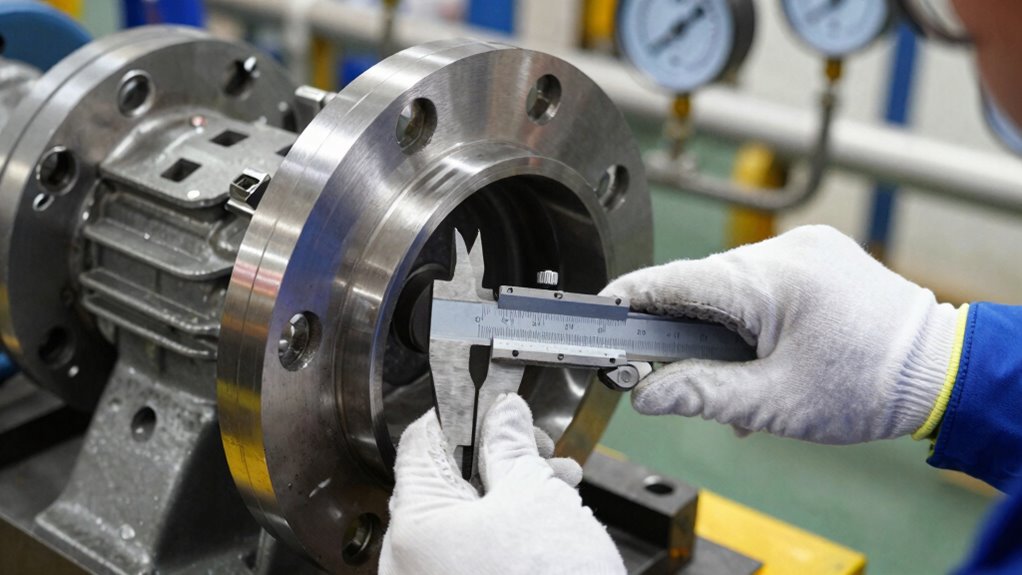

You need specific measuring tools, like a caliper or a tape measure, for accurate flange dimension measurement. While digital calipers offer precision, traditional rulers can suffice for rough checks. Flange calibration guarantees proper fit and avoids leaks. Don’t rely on guesswork; use the right tools to get precise readings, preventing costly mistakes and ensuring a secure, leak-free connection that keeps your system running smoothly.

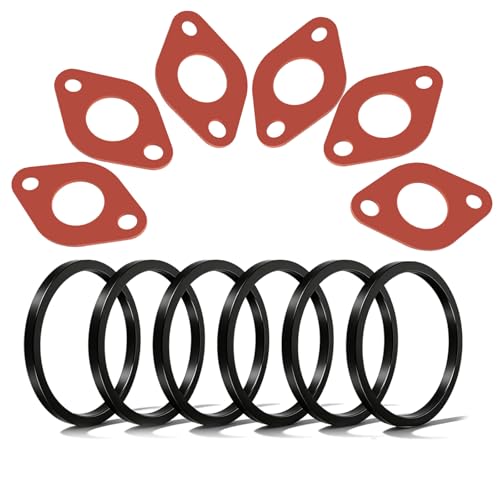

6Pcs Circulator Pump Flange Gaskets + Sealing Rings Compatible with TACO 007 Series B&G Grundfos Armstrong Circulator Pumps, 6Pack Flange Gasket Seals Replace 007-007RP, Black | High-Temperature
Precise Fit for Major Pump Brands：Designed for a precise fit, these gaskets are compatible with Taco 007 Series…
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
Conclusion
Now that you know what to measure and why flange size matters, you’re one step closer to solving your pump’s issues. But don’t get comfortable just yet—there’s always that tricky detail or unexpected twist lurking around the corner. So, stay sharp, double-check your measurements, and keep your eyes open. The next challenge could be just a measurement away. Are you ready to uncover what’s really causing your pump’s pain?
